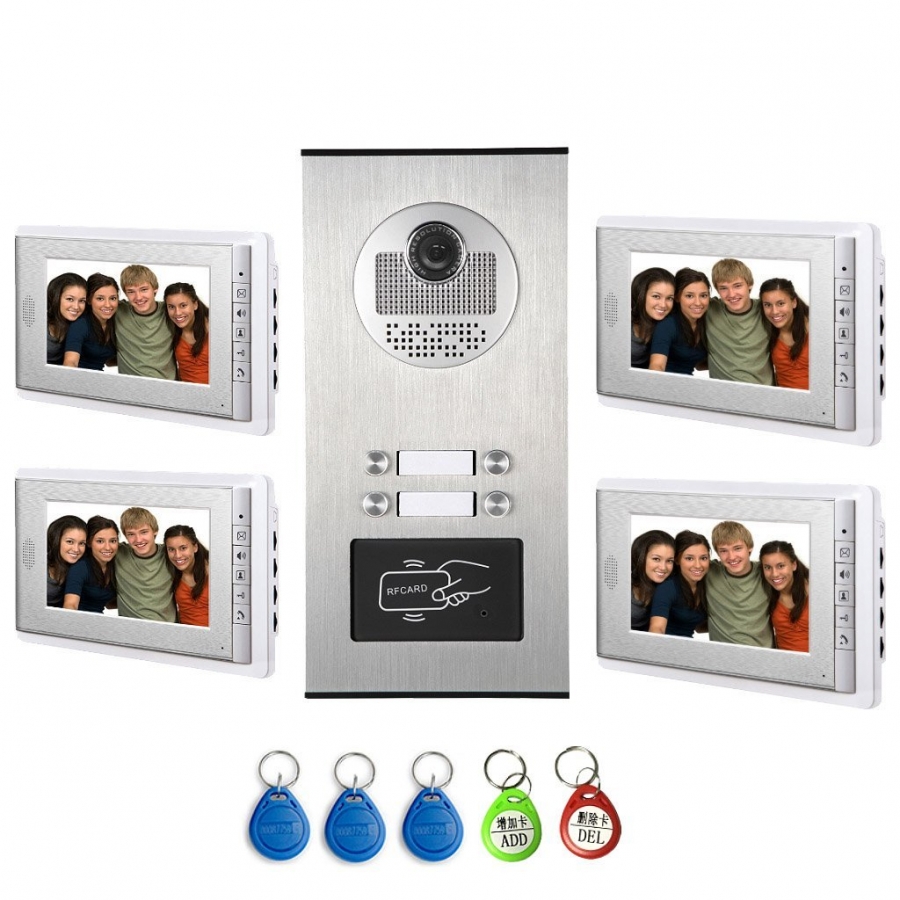

This Video door phone is a video intercom system, which allows you can see and talk to the visitor via outdoor camera.
This video door phone is embedded in RFID reader, which allows you use the keyfob to open the door from outside, It is a video intercom system anyway.
Outdoor unit equips has 4 call buttons 700TVL Camera, cast-iron aluminum alloy panel. Indoor monitor has 7" LCD Color Screen, can use 4 independent Household.
Please feel free to contact us if you need more monitors. Besides, this system can set 500 private codes correspond to user cards. If you need more user cards, please contact us.
Camera resolution: 700 TVL.
Camera: 1/3 Color CMOS Camera.
Built-in microphone and speaker.
Installation: Flush Mounted.
Power Adapter: From Monitor, DC 15V.
Material: Aluminum alloy, weatherproof.
Connection: 4 core/5 core wire (max support 12 monitors).
Embedded in: RFID reader with RFID Keyfobs.
Dimension:5.0 x 10.4 x 1.8 inch.
Display: 7 inch TFT LCD screen (16:9 display).
Resolution: 800 X 480.
Input: AC 100-240V 50 Hz-60 Hz.
Output: DC 15V/1500 mA.
Case: ABS Engineering Plastics.
Dimension:9.4 x 5.9 x 1.0 inch.
(Note:if connection Electric bolt lock, Electric strike,Electric magnetic lock,need extra "Power Supply Control" connecting the lock.
Please search: "AMOCAM Power Supply" for Dedicated Power Supply Control.)
1 * 4 Keys Outdoor unit
5 * RFID Keyfobs
4 * 7 inch Indoor Unit
4 * Power adapter
4 * 4 pin cable
4 * Mounting plate
1 * Bag of screws
1 * User manual
